Carbon Steel 2 : 1 Semi Elliptical Dished Heads, SE 2:1 Heads
Product Details
| General: | Ellipsoidal Dish End | Material: | SS316L,Iron |
|---|---|---|---|
| Shape: | 2:1 Ellipsoidal Dish End | Color: | According To Customer's Requirements |
| Surface Treatment: | Sand Blasting | Delivery Time: | 20 Days After Receiving The Down Payment |
| Highlight |
SS316L dished heads for tanks,10MM dished heads for tanks,semi elliptical head dimensions 1000mm |
||
Product Description
Asme 2:1 Ellipsoidal Dish End For Fire Pit Fire Bowl Dish Head
Description
We are counted amongst trusted names in manufacturing & supplying an exclusive range of Dish End. These are fabricated by our team of experts using high grade material. Our offered range of Dish End can be availed from us at very economical prices.
Features:
- Excellent performance
- Resistant to corrosion
- Abrasion resistance
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |

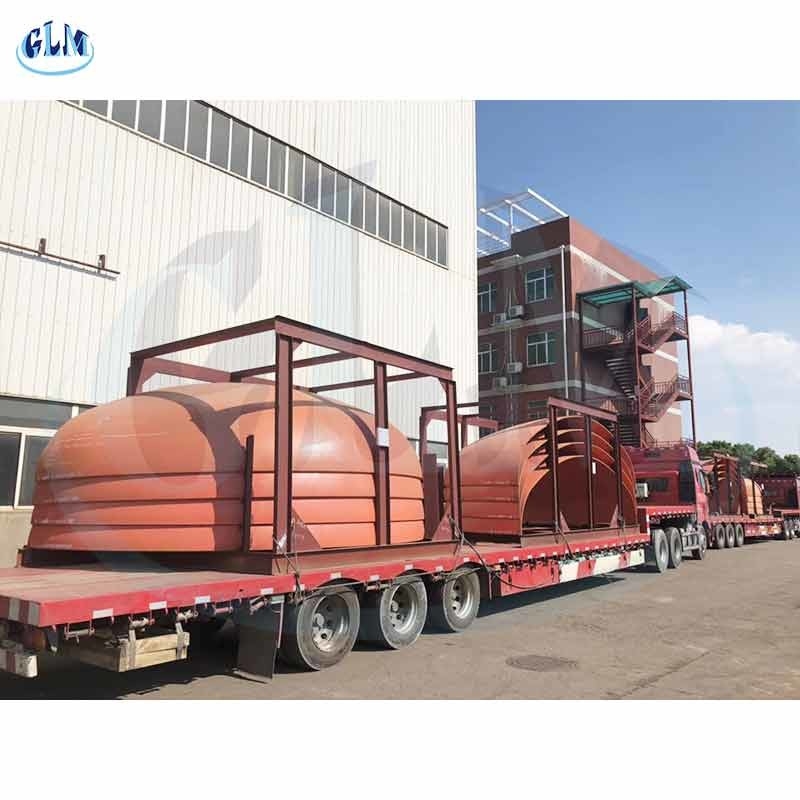

Product Display
