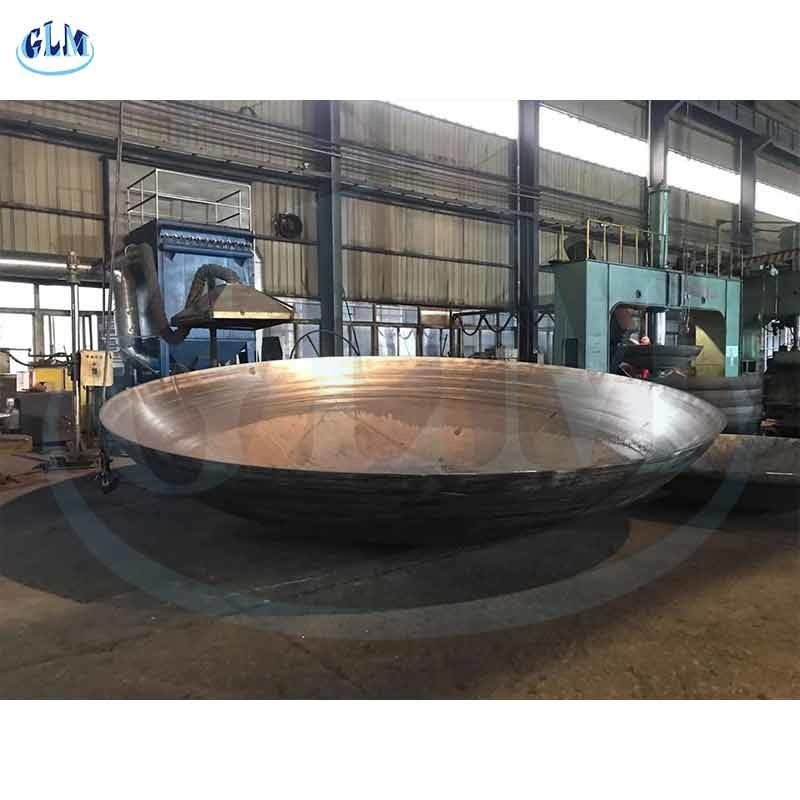

ASME Standard Ellipsoidal Dish End 2 To 1 Elliptical Head End Cap SS316L

ASME Standard Ellipsoidal Dish End 2 To 1 Elliptical Head End Cap SS316L
ASME Standard Ellipsoidal Dish End 2 To 1 Elliptical Head End Cap SS316L

Large Image :  ASME Standard Ellipsoidal Dish End 2 To 1 Elliptical Head End Cap SS316L

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

ASME Standard Ellipsoidal Dish End 2 To 1 Elliptical Head End Cap SS316L

Description
General: Dished Head Material: SS316L
Shape: Tank Head Color: According To Customer's Requirements
Application: Heat Pressure Vessel, Reaction Pressure Vessel Delivery Time: 20 Days After Receiving The Down Payment
High Light:

ASME Standard Ellipsoidal Dish End

,

100mm Ellipsoidal Dish End

,

2 to 1 elliptical head SS316L

ASME Standard SS316L material pipe end cap customized dished head



Description





Tank heads can be fabricated in configurations such as, dished or elliptical head, torispherical, hemisphere, or ASME 2:1 semi elliptical. We possess the welding capabilities to accommodate almost any design or applicable standard, our certified welders and advanced welding equipment are prepared to provide stick-electrode, semi-automatic, gas shielded, and submerged arc welding. Manufacturing seamless tank heads from 300mm up to 6000mm in diameter, in thickness from 4mm to 200mm , with various prepped edges, such as trimmed, untrimmed, beveled, or tapered. We also offer stress relieving and blasting services including post weld heat treating, normalizing, and annealing. A wide array of specialized testing is also available, with full test data reporting.





Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available







Product Display



ASME Standard Ellipsoidal Dish End 2 To 1 Elliptical Head End Cap SS316L 0

ASME Standard Ellipsoidal Dish End 2 To 1 Elliptical Head End Cap SS316L 1

ASME Standard Ellipsoidal Dish End 2 To 1 Elliptical Head End Cap SS316L 2

ASME Standard Ellipsoidal Dish End 2 To 1 Elliptical Head End Cap SS316L 3



Recommended by seller

ASME Standard Ellipsoidal Dish End 2 To 1 Elliptical Head End Cap SS316L 4

ASME Standard Ellipsoidal Dish End 2 To 1 Elliptical Head End Cap SS316L 5
