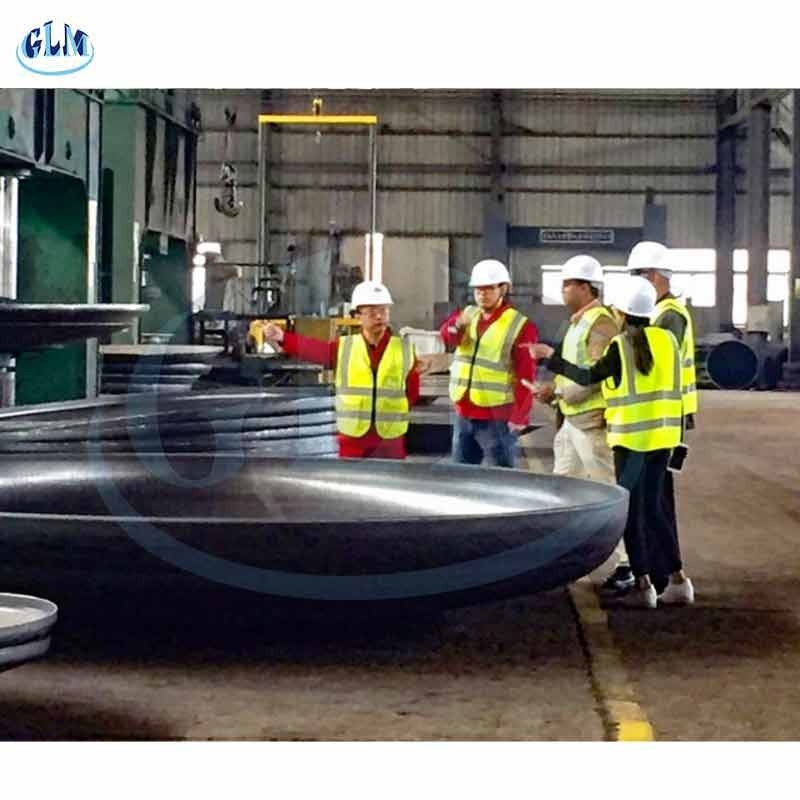

500mm To 1600mm Hemispherical Tank Heads Half Ball Carbon Steel Dished 16Mn

500mm To 1600mm Hemispherical Tank Heads Half Ball Carbon Steel Dished 16Mn
500mm To 1600mm Hemispherical Tank Heads Half Ball Carbon Steel Dished 16Mn

Large Image :  500mm To 1600mm Hemispherical Tank Heads Half Ball Carbon Steel Dished 16Mn

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

500mm To 1600mm Hemispherical Tank Heads Half Ball Carbon Steel Dished 16Mn

Description
Body Material: A3,20#,Q235,16Mn Head Code: Carbon Steel Hemisphere Head
Diameter: 1600mm Surface Treatment: Sand Blasting
Applicable Industries: Water Conservancy, Electric Power Delivery Time: According To Customers Requirement
High Light:

500mm hemispherical tank heads

,

1600mm hemispherical tank heads

,

Carbon Steel Dished Heads 16Mn

GLM Diameter 500mm to 1600mm Metal Half Carbon Steel Hemisphere head

Description



The hemispherical head is a head consisting of half a spherical shell and a straight edge . Hemispherical heads has the best mechanical properties and most economical materials used.



A hemispherical head gives an efficient combustion chamber with minimal heat loss to the head, and allows for two large valves. ...



The intake and exhaust valves lie on opposite sides of the chamber and necessitate a "cross-flow" head design.



Hemispherical heads are a popular choice for pressure vessels due to their ideal shape, which divides the pressure in the vessel equally across the head's surface. Also known as hemispherical tank heads or hemispherical dished ends, they're commonly used on liquid and gas storage tan



Material​:



Carbon steel tank ends/caps, Flat Dished Head: SA516 GR60N,GR70N



Stainless steel ELLIPSOIDAL DISHED END, elliptical tank head: SA240 304, 316



Titanium alloy Pressure Vessel Ends: SB256 GR1, GR2, GR5



Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Products

500mm To 1600mm Hemispherical Tank Heads Half Ball Carbon Steel Dished 16Mn 0500mm To 1600mm Hemispherical Tank Heads Half Ball Carbon Steel Dished 16Mn 1

500mm To 1600mm Hemispherical Tank Heads Half Ball Carbon Steel Dished 16Mn 2



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
