1600mm 8mm Pressure Vessel Dished Head Ellipitical End For Tank

Certification
China Wuhan Linmei Head Plate Co., Ltd. certification
China Wuhan Linmei Head Plate Co., Ltd. certification
I'm Online Chat Now

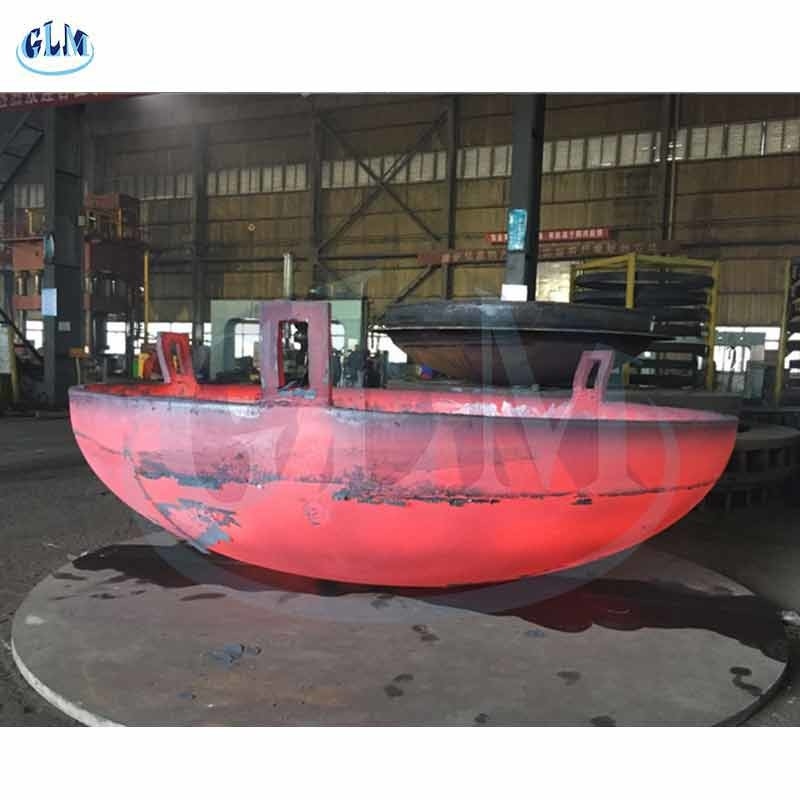

1600mm 8mm Pressure Vessel Dished Head Ellipitical End For Tank

1600mm 8mm Pressure Vessel Dished Head Ellipitical End For Tank
1600mm 8mm Pressure Vessel Dished Head Ellipitical End For Tank

Large Image :  1600mm 8mm Pressure Vessel Dished Head Ellipitical End For Tank

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

1600mm 8mm Pressure Vessel Dished Head Ellipitical End For Tank

Description
Diameter: 1600mm Head Code: Carbon Steel Ellipitical Heads
Thickness: 8mm Surface Treatment: Polishing
Applicable Industries: Water Conservancy, Electric Power Delivery Time: According To Customers Requirement
High Light:

1600mm Pressure Vessel Dished Head

,

8mm Pressure Vessel Dished Head

,

ellipsoidal dish end for tank

Diameter 1600mm thickness 8mm carbon steel ellipitical heads for tanks

Description

Ellipsoidal Head:



It is a most widely used Pressure Vessel Heads. It has wider Radial section is available for pressure distribution.it withstand maximum pressure as compared to other heads. So it is most preferred pressure vessels heads. for same design condition, Dish end Thickness of ellipsoidal heads is approximately equals to shell thickness so it is most economical heads. Generally most used Ellipsoidal Heads Configuration is as per 2:1 Ellipsoidal Section.



With over 20 years experience in this industry, we have cooperated with various customers from the whole world. And built an ongoing relationship with them already. Thanks to our quality control and producing team, and the support from our clients, we have won the good praise from them in various products including: hemisphere head, elliptical head, dish head, spherical head, flat head, conical head, BBQ firepit series.





Payment and Shipping Methods:

As a professional manufacturer and supplier for the tank heads, we support various payment and shipping methods.

We can take PayPal for the sampling order, and bank transfer, L/C for the bulk order.





Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Products

1600mm 8mm Pressure Vessel Dished Head Ellipitical End For Tank 01600mm 8mm Pressure Vessel Dished Head Ellipitical End For Tank 1

1600mm 8mm Pressure Vessel Dished Head Ellipitical End For Tank 2



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
