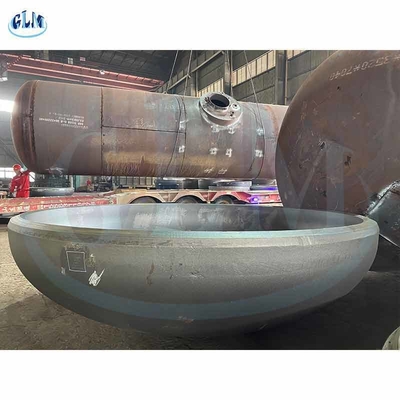

SS304L DIN Vessel Ellipsoidal Dished End Q235 End Cap For Storage Tanks

SS304L DIN Vessel Ellipsoidal Dished End Q235 End Cap For Storage Tanks
SS304L DIN Vessel Ellipsoidal Dished End Q235 End Cap For Storage Tanks

Large Image :  SS304L DIN Vessel Ellipsoidal Dished End Q235 End Cap For Storage Tanks

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

SS304L DIN Vessel Ellipsoidal Dished End Q235 End Cap For Storage Tanks

Description
Material: Carbon Steel,304, 304L, 316L Head Code: Carbon Steel Dished Heads
Diameter: 89mm--10000mm Standard: ANSI, ASTM, DIN
Applicable Industries: Oil, Chemical Industry, Water Conservancy Delivery Time: According To Customers Requirement
High Light:

SS304L ellipsoidal dish end

,

DIN ellipsoidal dish end

,

vessel dished ends Q235 end cap

Carbon steel elliptical dished head end cap for hot water storage tanks

Ellipsoidal Heads:



It is a most widely used Pressure Vessel Heads. It has wider Radial section is available for pressure distribution.it withstand maximum pressure as compared to other heads. So it is most preferred pressure vessels heads. for same design condition, Dish end Thickness of ellipsoidal heads is approximately equals to shell thickness so it is most economical heads. Generally most used Ellipsoidal Heads Configuration is as per 2:1 Ellipsoidal Section.



Quality in a pressure vessel begins with the tank heads. Tank heads are a critical piece of your tank fabrication. We offer many different styles of Stainless Steel heads., for example, ASME flanged and dished head, 2:1 elliptical head, dished head, flat head, Torispherical head, semi elliptical head, hemispherical head, spherical head, conical head, Toriconical head, and non-standard head.



Feature:

  1. Polishing for sanitary applications and aesthetic appeal
  2. Built to match your production processes and techniques
  3. Useful for moderate to high-pressure applications
  4. Bevel, taper, and landing zone weld preparation available
  5. Assembly with heat transfer can be provided





Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Products

SS304L DIN Vessel Ellipsoidal Dished End Q235 End Cap For Storage Tanks 0SS304L DIN Vessel Ellipsoidal Dished End Q235 End Cap For Storage Tanks 1

SS304L DIN Vessel Ellipsoidal Dished End Q235 End Cap For Storage Tanks 2



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
