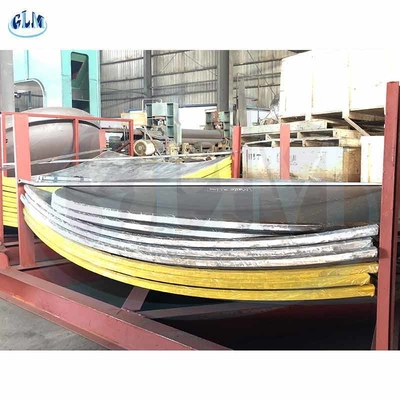

4000mm LNG LPG Tank Spherical Heads Hot Forming ASME Torispherical Dish End
Product Details
| General: | Spherical Tank Head | Forming Technology: | Hot Forming |
|---|---|---|---|
| Material: | Carbon Steel | Surface Treatment: | Rust-proof Oil, Galvanizing |
| Application: | LNG Tanks, Braziers, Cryogenics | Keywords: | Stainless Steel Dished End,boiler Bottoms |
| Highlight |
4000mm Spherical Heads Hot Forming,LNG LPG tank Spherical Heads,ASME torispherical dish end |
||
Product Description
Spherical metal Seal head LNG LPG cylinder tank head
Description
Wuhan linmei has been manufacturing dished and tank ends at our wuhan site since 2000.
During that time we have acquired a wealth of experience and expertise. There can be very few applications that we have not come across, and we would be more than pleased to give advice on any specific design or application you may have.
Dished and tank ends are cold formed by firstly pressing the spherical radius followed by spinning the corner radius and straight flange. They can also be dished only , or conical spinning’s.
TORISPHERICAL, ELLIPSOIDAL AND HEMISPHERICAL HEADS
We are able to manufacture torispherical, ellipsoidal and hemispherical heads by either pressing or spinning or a combination of both, in a range of materials including carbon steel, stainless steels, titanium and aluminium.
We can also machine secondary features which may be required after the forming process has been completed.
Additional processes include; polishing, heat treatment , shot blasting and painting as well as pickle and passivation for non-ferrous materials .
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
Product Display
