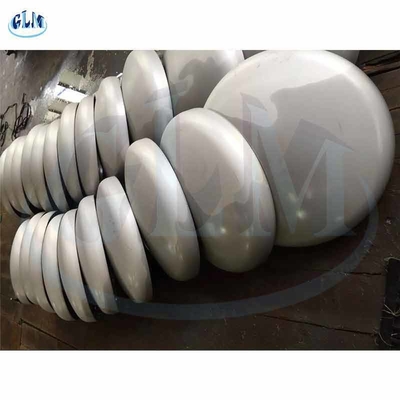

300mm X 3mm S235 Ellipitical Dished Heads For Pipe Fitting 2 1 Dimensions

300mm X 3mm S235 Ellipitical Dished Heads For Pipe Fitting 2 1 Dimensions
300mm X 3mm S235 Ellipitical Dished Heads For Pipe Fitting 2 1 Dimensions

Large Image :  300mm X 3mm S235 Ellipitical Dished Heads For Pipe Fitting 2 1 Dimensions

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

300mm X 3mm S235 Ellipitical Dished Heads For Pipe Fitting 2 1 Dimensions

Description
General: Ellipitical Dished Heads Material: S 235
Specification: Standard Specification Surface Treatment: Galvanizing, Polishing
Application: Shell & Tube Type Heat Exchanger Delivery Time: 20 Days After Receiving The Down Payment
High Light:

300mm ellipitical dished heads

,

3mm ellipitical dished heads

,

S235 elliptical head 2 1 dimensions

low price with high quality 300*3mm ellipitical dished heads for pipe fitting



Description



Vessel heads are very varied used in candleholders to pipe end-pieces or pressure vessels in equipment construction.



We manufacture a wide range of vessel heads to works standards, both for construction purposes and as dished vessel heads in the form of torispherical heads, elliptical heads and caps for pressure applications.



And if a central hole is needed for connections, this can also be provided.

lifting and handling of a Pressure vessel

Vessels used to store liquids at low pressure are normally fitted with flat end sections. This is the cheapest way of enclosing the end of a vessel. For storage of fluids at higher pressures, the ends are normally domed to reduce mechanical stresses.

A number of different domed head designs are used.





Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available







Product Display



300mm X 3mm S235 Ellipitical Dished Heads For Pipe Fitting 2 1 Dimensions 0

300mm X 3mm S235 Ellipitical Dished Heads For Pipe Fitting 2 1 Dimensions 1

300mm X 3mm S235 Ellipitical Dished Heads For Pipe Fitting 2 1 Dimensions 2

300mm X 3mm S235 Ellipitical Dished Heads For Pipe Fitting 2 1 Dimensions 3
