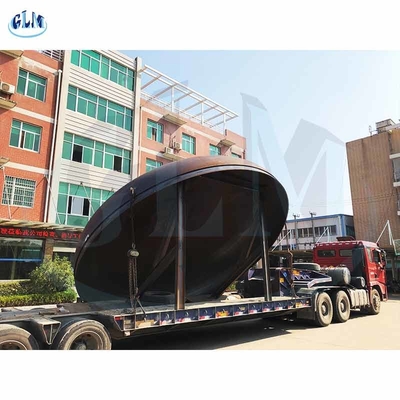

16Mn 3600mm ASME Tank Elliptical Dished Head Ends As516 Gr 70 For Boiler
Product Details
| General: | Tank Head | Material: | As516 Gr 70 Q235,Q345B,16Mn |
|---|---|---|---|
| Specification: | Standard Specification | Surface Treatment: | Rust-proof Oil, Galvanizing |
| Application: | Heat Pressure Vessel, Reaction Pressure Vessel | Delivery Time: | 20 Days After Receiving The Down Payment |
| Highlight |
16Mn elliptical dished head,3600mm elliptical dished head,asme tank Dished Ends |
||
Product Description
ASME diameter 3600 mm with as516 gr 70 material Tank heads for oil gas tanks
Description
We are among the manufacturers of Dished- Ends Torispherical heads that are widely used in chemical refineries & plants and oil and gas industries. Our products are manufactured using high quality stainless steel, low alloy steel.
Experienced in making Dished-Ends Torispherical heads care is taken during all the stages of manufacturing and to meet the stringent pressure and requirements.
Features :
arrow Shape (Applicable standard or dishing radius r1 and knuckle radius r2)
arrow Diameter Da or Di
arrow Minimum wall thickness after formings
arrow Straight flange h1
arrow Weld-edge preparation
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
Product Display
