PED Half Ball Ellipsoidal Dish End 50mm Thick Elliptical Head 2 1 Dimensions ASME

PED Half Ball Ellipsoidal Dish End 50mm Thick Elliptical Head 2 1 Dimensions ASME
PED Half Ball Ellipsoidal Dish End 50mm Thick Elliptical Head 2 1 Dimensions ASME
PED Half Ball Ellipsoidal Dish End 50mm Thick Elliptical Head 2 1 Dimensions ASME PED Half Ball Ellipsoidal Dish End 50mm Thick Elliptical Head 2 1 Dimensions ASME

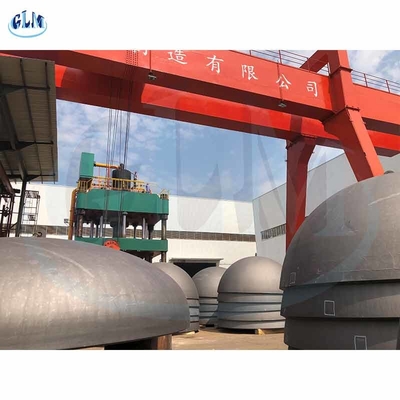

Large Image :  PED Half Ball Ellipsoidal Dish End 50mm Thick Elliptical Head 2 1 Dimensions ASME

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

PED Half Ball Ellipsoidal Dish End 50mm Thick Elliptical Head 2 1 Dimensions ASME

Description
General: Dished End Material: Q345B SA516gr70 And SA240
Specification: Standard Specification Storage Medium: Moncombustible/Nontoxic
Application: Heat Pressure Vessel, Reaction Pressure Vessel Delivery Time: 20 Days After Receiving The Down Payment
High Light:

PED Half Ball Ellipsoidal Dish End

,

Ellipsoidal Dish End 50mm thick

,

elliptical head 2 1 dimensions ASME

Hot Pressing Steel Half Ball Dished End for Pressure Vessel



Description



Wuhan Linmei Head Plate is a leading producer of various types of dished heads, cones, and other special pressed products in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.GLM supplies the entire Chinese market and the rest of the world. Due to our location and good access to water and roads we have no limitation in transporting our finished product (even large items) to Shanghai Sea Port from where we can ship to our customers all over the world.



Our team of more than 100 professionals has good knowledge and expertise in forming all type of materials into different shapes. Our hard working and flexible craftsmanship is ready non-stop to execute the orders within the shortest possible lead time and to maintain/respect our commitments with our clients.Our engineering/production teams have an excellent and extensive knowledge of materials, welding processes and forming. They are able to provide most economical and efficient solutions and to enable our company to maintain a sustainable business for the long-term.





Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available







Product Display



PED Half Ball Ellipsoidal Dish End 50mm Thick Elliptical Head 2 1 Dimensions ASME 0PED Half Ball Ellipsoidal Dish End 50mm Thick Elliptical Head 2 1 Dimensions ASME 1

PED Half Ball Ellipsoidal Dish End 50mm Thick Elliptical Head 2 1 Dimensions ASME 2

PED Half Ball Ellipsoidal Dish End 50mm Thick Elliptical Head 2 1 Dimensions ASME 3
