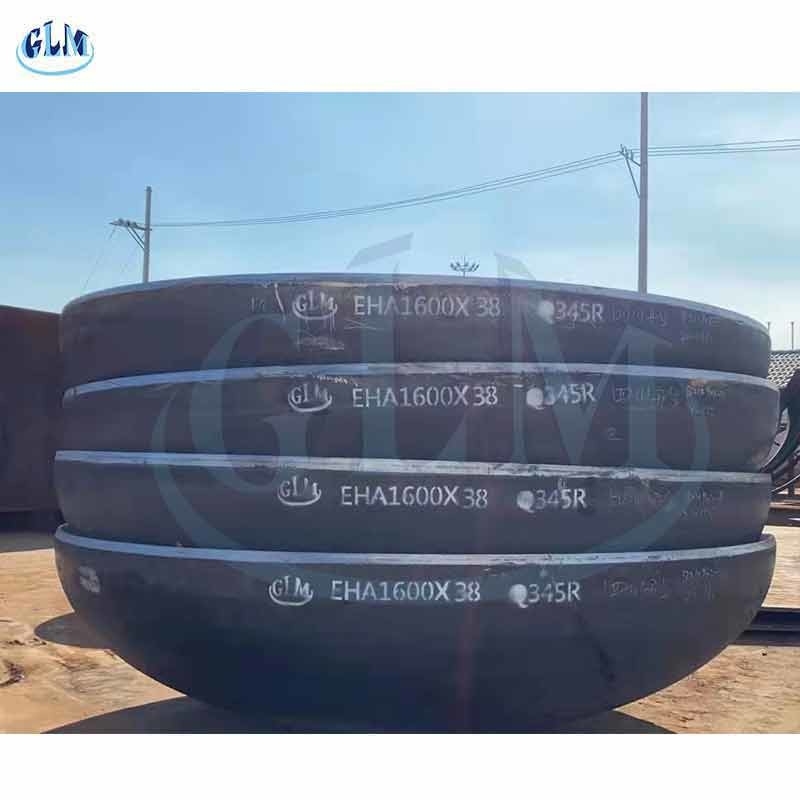

1600mm Diameter 38mm Thickness Elliptical Head 2 1 Dimensions Torispherical Dished

Certification
China Wuhan Linmei Head Plate Co., Ltd. certification
China Wuhan Linmei Head Plate Co., Ltd. certification
I'm Online Chat Now

1600mm Diameter 38mm Thickness Elliptical Head 2 1 Dimensions Torispherical Dished

1600mm Diameter 38mm Thickness Elliptical Head 2 1 Dimensions Torispherical Dished
1600mm Diameter 38mm Thickness Elliptical Head 2 1 Dimensions Torispherical Dished

Large Image :  1600mm Diameter 38mm Thickness Elliptical Head 2 1 Dimensions Torispherical Dished

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

1600mm Diameter 38mm Thickness Elliptical Head 2 1 Dimensions Torispherical Dished

Description
General: Dished Head Name: Elliptical Dish Head
Material: Q345R Storage Medium: Moncombustible / Nontoxic
Pressure Level: High Pressure Surface Treatment: As Your Requirments
Keyword: Elliptical Dish Head Diameter: 89mm--10000mm
High Light:

Q345R elliptical head 2 1 dimensions

,

elliptical head 2 1 dimensions

,

torispherical dished head 300mm

ASME Standard 1600mm Diameter 38mm Thickness elliptical Dish Head



Elliptical dished heads. We manufacture stainless steel heads by means of cold forming. Both the most common type and the most special and complex ones are realized in coordination with our customers: the final product is customized one. We can carry out different types of surface finishing with high precision technology.



1.Dished heads are mostly used in pressure mostly usedin pressure


2.Dished heads are mostly used in pressure mostly usedin pressure vessel manufacturing industries





In-Process inspection &Test Requirement



  1. cutting and marking transfer and Identification marks
  2. bevel preparation with MT on bevel edges.
  3. Welding
  4. Forming of heads (Cold forming)
  5. NDE after forming RT for welding seams
  6. Final dimensional and visual inspection (Dimensions, Ovality, Profile, Thickness, Height,
  7. Cutting from the lines and Bevel preparation
  8. surface treatment : Sand blast with anti-rust oil
  9. Packaing and delivery





Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Product Display



1600mm Diameter 38mm Thickness Elliptical Head 2 1 Dimensions Torispherical Dished 01600mm Diameter 38mm Thickness Elliptical Head 2 1 Dimensions Torispherical Dished 1

1600mm Diameter 38mm Thickness Elliptical Head 2 1 Dimensions Torispherical Dished 21600mm Diameter 38mm Thickness Elliptical Head 2 1 Dimensions Torispherical Dished 3

1600mm Diameter 38mm Thickness Elliptical Head 2 1 Dimensions Torispherical Dished 4

1600mm Diameter 38mm Thickness Elliptical Head 2 1 Dimensions Torispherical Dished 5



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
