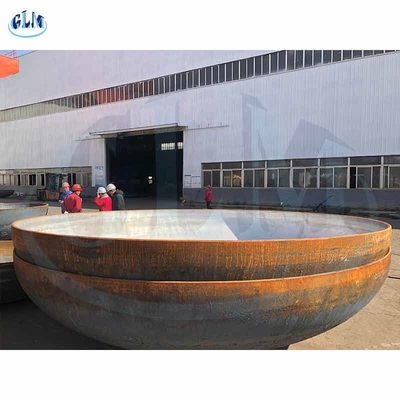

316L 321 Stainless Steel Dished Tank Heads Types Of Dish End In Pressure Vessel
Product Details
| General: | Clad Dish Head | Material: | Stainless Steel Clad Dish Head |
|---|---|---|---|
| Industry Focus: | Research And Development Projects | Manufacture Way: | Explosion Clad And Overlay Clad |
| Application: | Power Station, Industrial | Delivery Time: | 20 Days After Receiving The Down Payment |
| Highlight |
316L stainless steel dished tank heads,321 stainless steel dished tank heads,GB carbon steel tank end cap |
||
Product Description
ASME PED Standard Carbon Steel Add Stainless Steel Clad Dish Head
Elliptical carbon and stainless steel clad dished head is the main pressure-bearing part of the pressure vessel to close the end of the vessel for sealing, it is welded to the vessel shell.The main clad dish head materials is carbon steel and stainless steel,the common one is SA516Gr70 and 304,316 and so on.
It can be elliptical dish head,torispherical dish head ,flat dish head ,hemispherical dish head based on its shape.As a usual ,have carbon steel ,stainless steel material dish head,cald material dish head,standard have ASME ,GB .Size and thickness can be as your requirements.
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
