PED 300mm 89MM Cylinder Conical Tank Heads Crown Radius Of Ellipsoidal Metal Dish

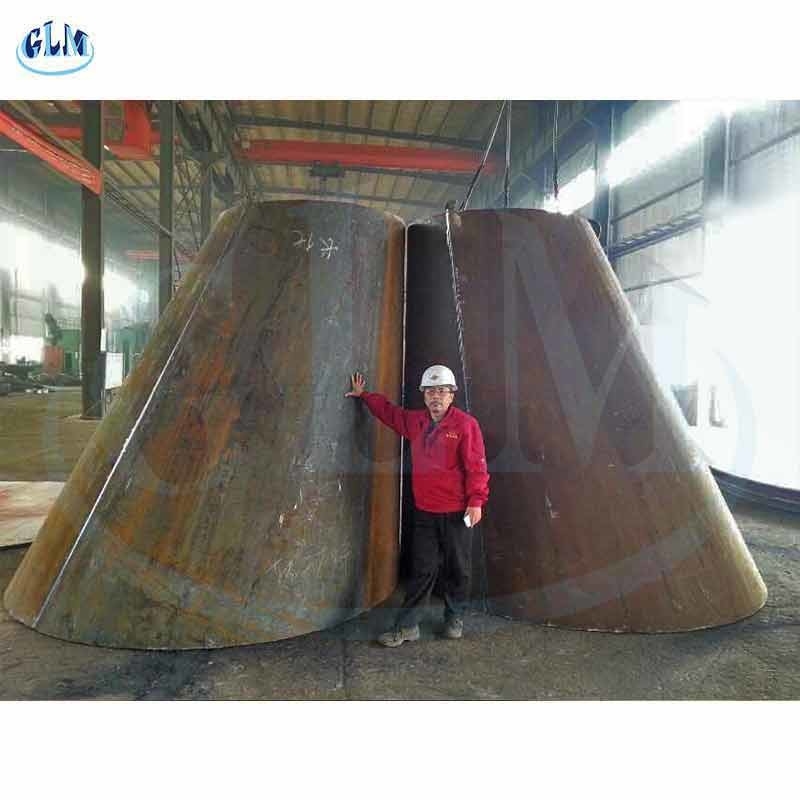

Large Image : PED 300mm 89MM Cylinder Conical Tank Heads Crown Radius Of Ellipsoidal Metal Dish

Product Details:

Place of Origin:	China
Brand Name:	GLM
Certification:	ASME, PED and GB
Model Number:	CAP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden box and iron shelf or as percustomers requirement
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000

Contact Now

PED 300mm 89MM Cylinder Conical Tank Heads Crown Radius Of Ellipsoidal Metal Dish

Description

Head Code:	Tank Head	Shape:	Conical Dish Head
Appearance Treatment:	Sandy-blasting	Groove:	Groove In, Groove Outside Or Both
Connection:	Welding	Keywords:	Stainless Steel Conical Head
Highlight:	PED Cylinder Conical Tank Heads , 300mm Conical Tank Heads stainless steel , 89MM crown radius of ellipsoidal head

Cylinder stainless steel conical metal dish gland tank head

Product Description

The ASME standadr Stainless steel Cone conical head is the end cap on the pressure vessel and is a main pressure bearing component of the pressure vessel. It acts as a seal. One is made into the bottom of the tank pressure vessel, the other is the end of the pipe, not ready to extend forward, then use a head in the form of welding the pipe seal

Packing & Delivery

Delivery Details : 7-10 days after order of steel hemispheres

Packing Details :

1 . Pallet packing

2 . wooden case packing

3 . steel pallet packing

4 . nude packing

5 . according to customers requirement

Specifications

Brand Name:	GLM
Diameter:	89mm--10000mm
Thickness:	2mm--300mm
Reduction Ratio:	about 10%
Material:	Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method:	Hot forming,cold forming
Surface Treatment:	Sand Blasting,Pickling,oil,discaling
Inspection:	UT,RT,MT,PT,TOFD.
Applicable Standard:	ASME ,PED and GB
Certificate:	ISO9001,ISO45001,OHSAS18001
Applications:	Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc.
Package:	Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product:	Available

Product Image

PED 300mm 89MM Cylinder Conical Tank Heads Crown Radius Of Ellipsoidal Metal Dish 0

PED 300mm 89MM Cylinder Conical Tank Heads Crown Radius Of Ellipsoidal Metal Dish 1

You may also like

PED 300mm 89MM Cylinder Conical Tank Heads Crown Radius Of Ellipsoidal Metal Dish 2

PED 300mm 89MM Cylinder Conical Tank Heads Crown Radius Of Ellipsoidal Metal Dish 3

APPLICATIONS OF Conical Head

PED 300mm 89MM Cylinder Conical Tank Heads Crown Radius Of Ellipsoidal Metal Dish 4
