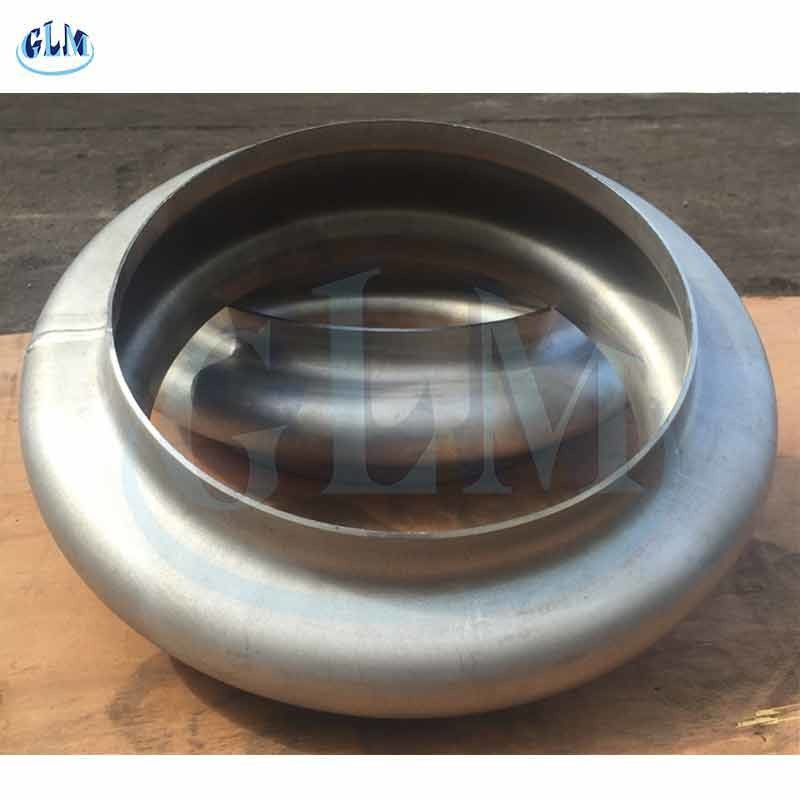

Sus316l Single Stainless Steel Bellows Expansion Joint 2000mm

Sus316l Single Stainless Steel Bellows Expansion Joint 2000mm
Sus316l Single Stainless Steel Bellows Expansion Joint 2000mm

Large Image :  Sus316l Single Stainless Steel Bellows Expansion Joint 2000mm

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

Sus316l Single Stainless Steel Bellows Expansion Joint 2000mm

Description
Head Code: Expansion Joint Customized Product: External Head Diameter
Material: SUS316L Size: DN2000
Keywords: Dished Heads Thickness: 2mm--300mm
Edge Preparation: Available Product Name: Pressure Vessels Heads
High Light:

Sus316l stainless steel bellows expansion joint

,

stainless steel bellows expansion joint 2000mm

,

expansion bellows in piping 3000mm

SUS316L SINGLE BELLOW EXPANSION JOINT





Description



we can make the metallic expansion joints according to our customers'design, or we can also design for our customers for this expansion joint.



TCI provides Stainless steel expansion joints for chemical industries or power technologies, the stainless steel expansion joints are in high performance multi-ply metallic bellows fabricated from Stainless steel, Inconel 625, Alloy X, SS316 Stainless steel and other special material.



We can provide stainless steel expansion joints sizes from DN50 to DN1000, we can also make according to customers drawings.



Third party inspection is accepted.




Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





EXPANSION JOINT Product Image

Sus316l Single Stainless Steel Bellows Expansion Joint 2000mm 0

Sus316l Single Stainless Steel Bellows Expansion Joint 2000mm 1



Sus316l Single Stainless Steel Bellows Expansion Joint 2000mm 2

Sus316l Single Stainless Steel Bellows Expansion Joint 2000mm 3





Package Information





Sus316l Single Stainless Steel Bellows Expansion Joint 2000mm 4Sus316l Single Stainless Steel Bellows Expansion Joint 2000mm 5



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
