Duplex 5mm 321 Torispherical Dished Semi Elliptical Head Hemispherical Shaped

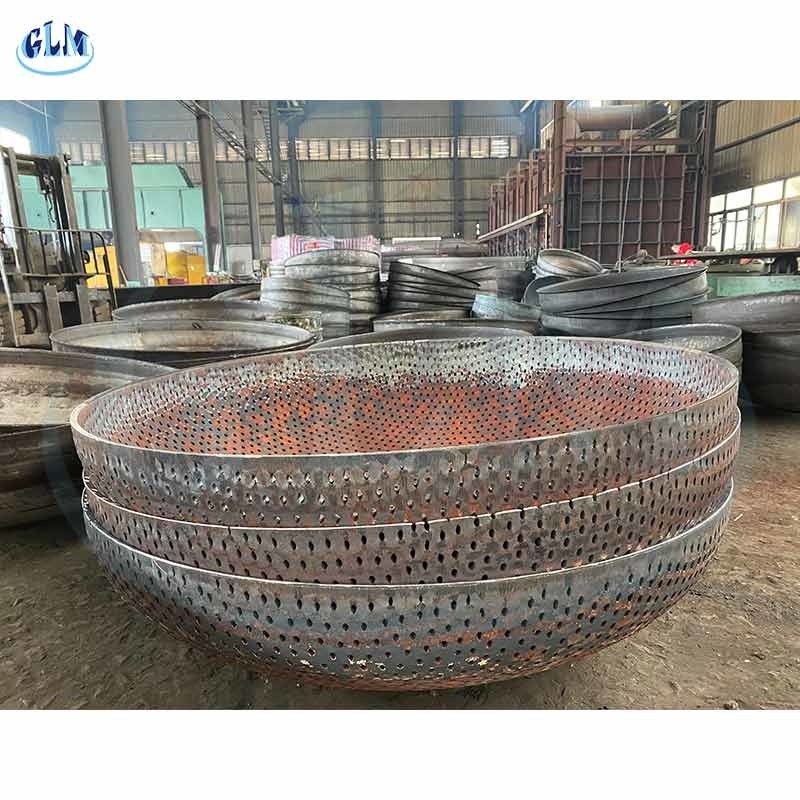

Large Image : Duplex 5mm 321 Torispherical Dished Semi Elliptical Head Hemispherical Shaped

Product Details:

Place of Origin:	China
Brand Name:	GLM
Certification:	ASME, PED and GB
Model Number:	CAP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden box and iron shelf or as percustomers requirement
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000

Contact Now

Duplex 5mm 321 Torispherical Dished Semi Elliptical Head Hemispherical Shaped

Description

Head Code:	Dished Tank Heads	Head Shape:	Ellipsoidal,Hemispherical,Flat
Material:	SS 304/316/321,Q238B	Surface Treatment:	Sand Blast, Pickling Passivation, Polishing
Keywords:	Steel Tank Heads	Range Of Applications:	Power Station, Industrial, Chemical Or Oil Industry
Edge Preparation:	According To Requirement
Highlight:	Duplex semi elliptical head , 5mm semi elliptical head , 321 torispherical dished head

Formed Heads for Pressure Vessels Elliptical Head Tube End Cap

Description

Know More About Elliptical Head:

Elliptical head is usually made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked.

The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter.
The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1.
The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.
The ellipsoidal head has good mechanical properties better than the torispherical head.
Due to the application of spinning manufacturing process in recent years, the fabrications of the larger diameter elliptical head is also can be realized.
ASME elliptical dished heads are used in the construction of tanks for unfired pressure vessels, such as liquefied petroleum gas and air receivers.

Specifications:

Brand Name:	GLM
Diameter:	89mm--10000mm
Thickness:	2mm--300mm
Reduction Ratio:	about 10%
Material:	Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method:	Hot forming,cold forming
Surface Treatment:	Sand Blasting,Pickling,oil,discaling
Inspection:	UT,RT,MT,PT,TOFD.
Applicable Standard:	ASME ,PED and GB
Certificate:	ISO9001,ISO45001,OHSAS18001
Applications:	Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc.
Package:	Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product:	Available

Pressure Vessels Elliptical Head Product Image

Duplex 5mm 321 Torispherical Dished Semi Elliptical Head Hemispherical Shaped 0

Duplex 5mm 321 Torispherical Dished Semi Elliptical Head Hemispherical Shaped 2

Duplex 5mm 321 Torispherical Dished Semi Elliptical Head Hemispherical Shaped 3

Package Information

Duplex 5mm 321 Torispherical Dished Semi Elliptical Head Hemispherical Shaped 4
