Product Details:
|
| Head Code: | Semi-Ellipsoidal Dish End | Forming: | Hot Mould Pressing |
|---|---|---|---|
| Material: | MILD STEEL; MS | Progress: | Forged And Hot Rolled |
| Keywords: | Semi-Ellipsoidal Heads | Application:: | Oil Plant |
| Size: | Customized Size | ||
| High Light: | ASME Semi Elliptical Head,5mm U Stamp Semi Elliptical Head,400MM elliptical tank head dimension |
||

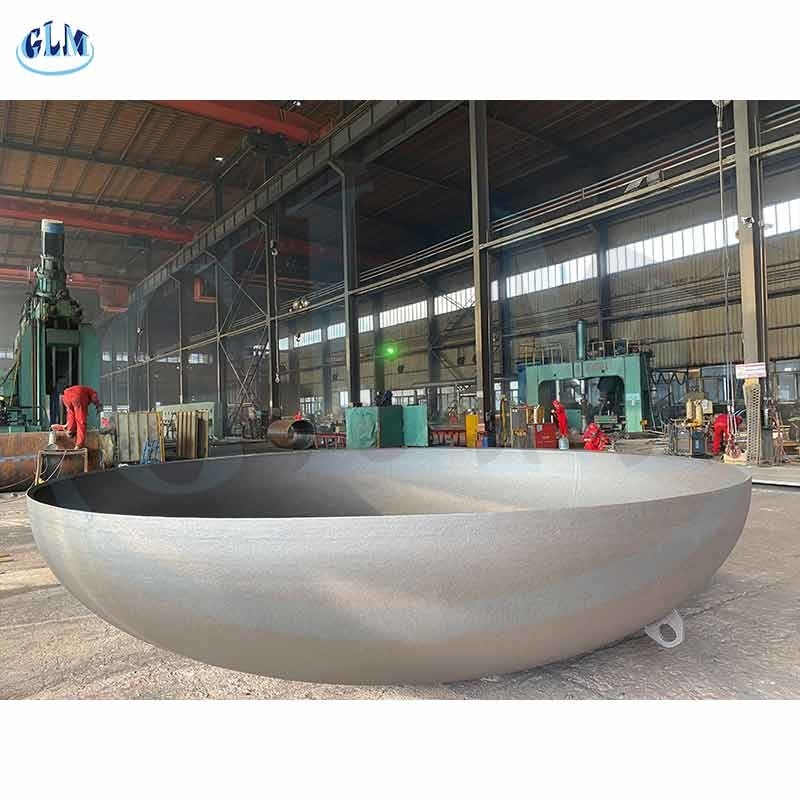

ASME U Stamp Semi-Ellipsoidal Dished Heads for Oil Plant
Ellipsoidal Heads
The 2:1 elliptical tank heads are used extensively for liquefied petroleum gas tanks, air receivers and other pressure vessels. For this type of head, the depth of tank head is one-quarter of the vessel’s internal diameter. With its reduced metal thickness, elliptical tank heads offer an economic solution for medium-pressure tanks. These can be custom formed from:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
