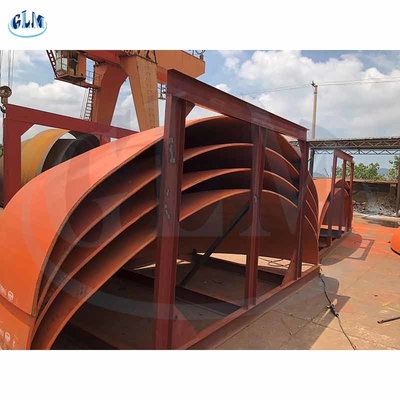

50mm 150mm Elliptical Dish Head Hemispherical Tank Heads Carbon Steel Q345

50mm 150mm Elliptical Dish Head Hemispherical Tank Heads Carbon Steel Q345
50mm 150mm Elliptical Dish Head Hemispherical Tank Heads Carbon Steel Q345

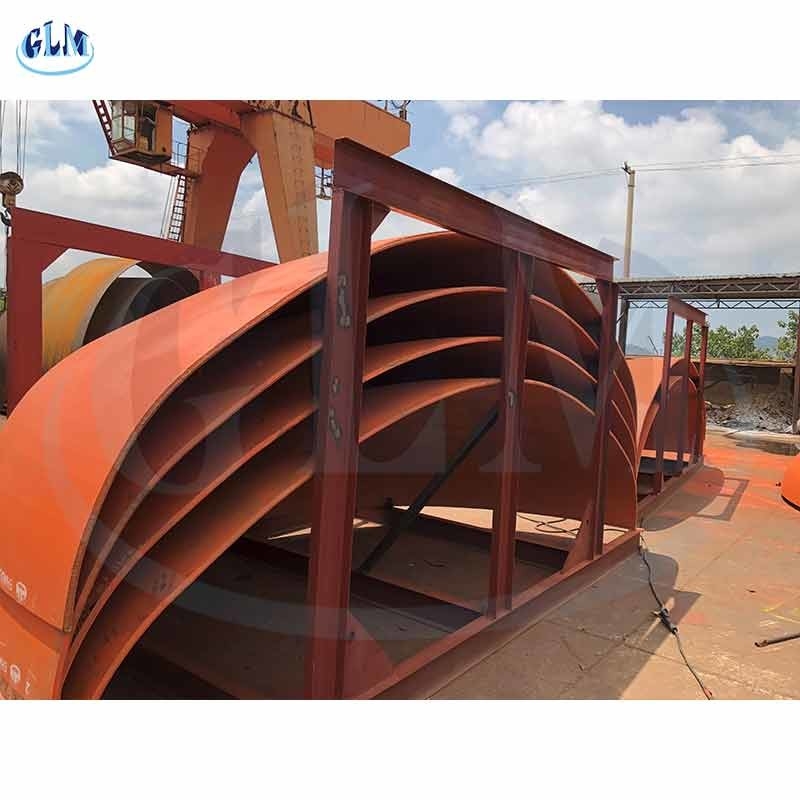

Large Image :  50mm 150mm Elliptical Dish Head Hemispherical Tank Heads Carbon Steel Q345

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

50mm 150mm Elliptical Dish Head Hemispherical Tank Heads Carbon Steel Q345

Description
Head Type:: Dish/Eliptical Head Shape: Round
Transport Package: Standard Export Packing For Dish End Application:: Storage Tank, Heat Exchanger, Special Gas Tank
Keywords: Elliptical Dish Head Reduction Ratio: Reduction Ratio
Inspection: UT,RT,MT,PT,TOFD.
High Light:

50mm Elliptical Dish Head

,

150mm Elliptical Dish Head

,

hemispherical tank heads carbon steel Q345

Elliptical Head 2: 1/ Hemispherical Head/Dished Head For Storage Tank Cover



Product Description

1. Material:mild steel,low alloy steel,carbon steel,stainless steel,clad plate,etc
2. Processing Scope: Di:300-12000m Thickness:3-150mm

Do: 300-12000mm SF: 0-50mm





Features of tank head:



  1. 1.tank head is composed of half ellipsoid and a cylindrical straight segments. The Straight section can avoid mutation of radius of curvature between the connection welds of the head and cylinder, thus improving the stress status of the welds.
  2. 2.As The Meridian curvature change of ellipsoidal part of the tank head is smooth and continuous, the stress distribute uniformly.
  3. 3.Easy to punch forming compared with the hemispherical head, because the depth of ellipsoidal head is smaller than the hemispherical head.



Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Product Image

50mm 150mm Elliptical Dish Head Hemispherical Tank Heads Carbon Steel Q345 0



50mm 150mm Elliptical Dish Head Hemispherical Tank Heads Carbon Steel Q345 1



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
