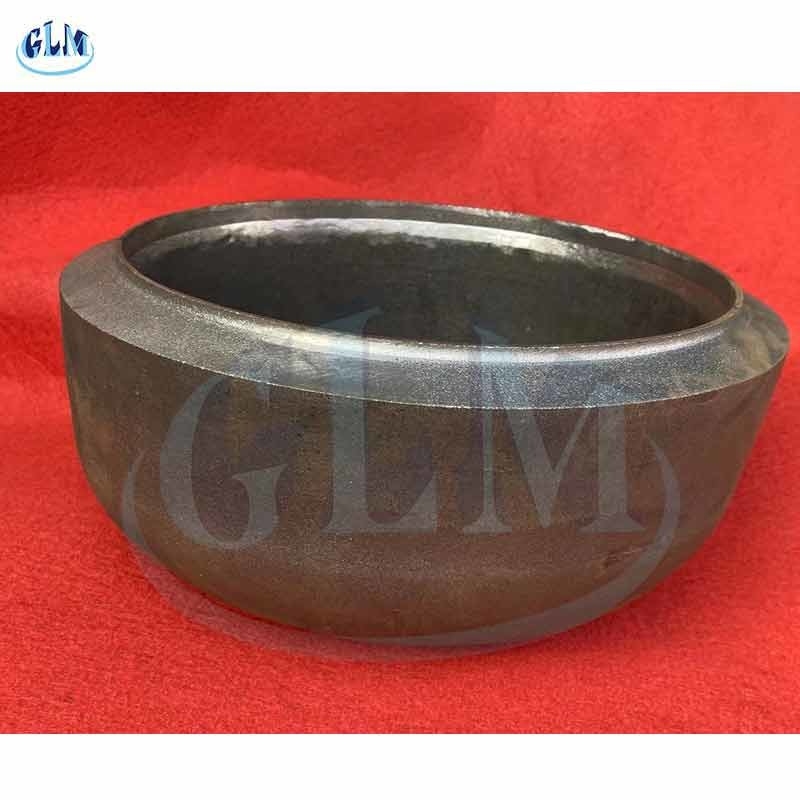

10000mm Super Duplex Torispherical Dished Head GB Pressure Vessel Dished Ends

10000mm Super Duplex Torispherical Dished Head GB Pressure Vessel Dished Ends
10000mm Super Duplex Torispherical Dished Head GB Pressure Vessel Dished Ends

Large Image :  10000mm Super Duplex Torispherical Dished Head GB Pressure Vessel Dished Ends

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

10000mm Super Duplex Torispherical Dished Head GB Pressure Vessel Dished Ends

Description
General: Torispherical Head Material: Carbon Steel,stainless Steel
Industry Focus: Research And Development Projects D0: External Head Diameter
Di: Internal Head Diameter CR: Crown Radius
High Light:

10000mm Torispherical Dished Head

,

Super Duplex Torispherical Dished Head

,

GB pressure vessel dished ends

Welding Torispherical dish caps ends for pressure vessel tank



Torispherical end is composed of a spherical cap with a larger radius from the center, a ring shell with a smaller radius around it, and a straight section of a cylinder.





Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available
