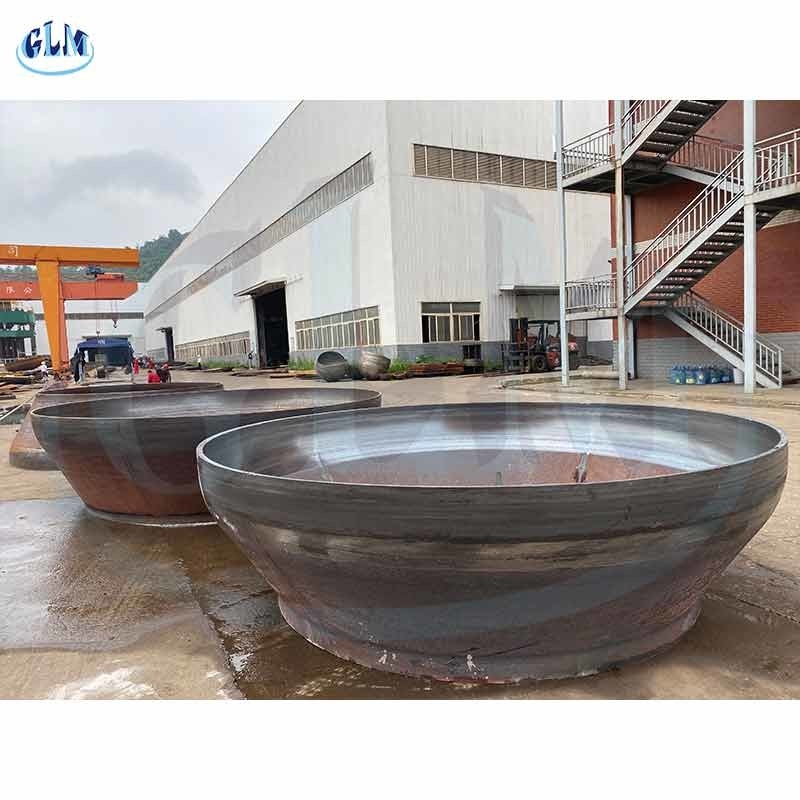

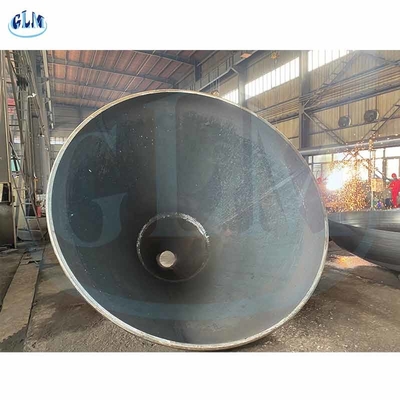

Dish Cone Stainless Steel Pipe Caps Welded ASME Q235 For Vessel Bottom

Dish Cone Stainless Steel Pipe Caps Welded ASME Q235 For Vessel Bottom
Dish Cone Stainless Steel Pipe Caps Welded ASME Q235 For Vessel Bottom Dish Cone Stainless Steel Pipe Caps Welded ASME Q235 For Vessel Bottom

Large Image :  Dish Cone Stainless Steel Pipe Caps Welded ASME Q235 For Vessel Bottom

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

Dish Cone Stainless Steel Pipe Caps Welded ASME Q235 For Vessel Bottom

Description
Head Code: Conical Head Technology: Hot Pressing,cold Pressing
Reduction Ratio:: About 10% Certificate: ISO9001 ,ISO14001,OHSAS18001
High Light:

dish cone stainless steel

,

cone stainless steel ASME

,

steel pipe caps welded Q235

Carbon Steel conical end caps customised dish cap





Product Description


Conical Head  is widely used for vessel bottom or cover plates. Our asme conical head is often made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. With the shape of concentric cone, the conical head consists of a large end cone and a small end. Cone and large end of the connection, due to geometric discontinuity, the radius of curvature of the mutation, so there will be a large lateral thrust, causing a large edge stress, prone to bending, it is necessary to strengthen.the tapered head The cone head type is divided into CHA (30), CHA (45), CHA (60) by half angle. According to the size of the end of the type is divided into non-folding conical tank head and hemming conical dished head.





Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available
