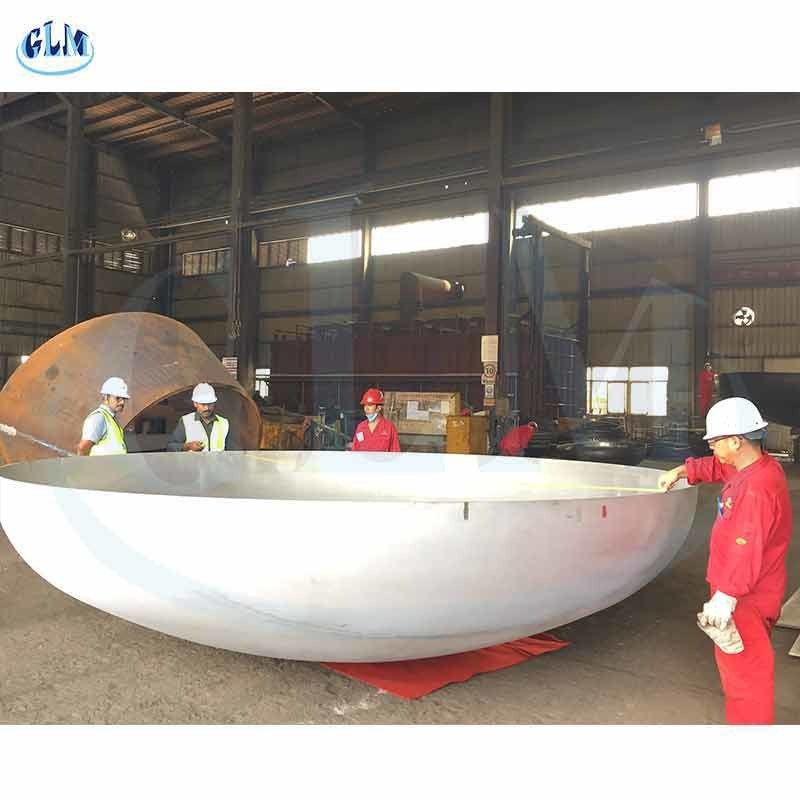

3MM 6000MM Stainless Steel Dish Head PED Semi Ellipsoidal Tank Head
Product Details
| Material: | Stainless Steel | Thickness:: | 2mm–300mm |
|---|---|---|---|
| Diameter: | 89mm–10000mm | Technics:: | Forged |
| Highlight |
3mm Stainless Steel Dish Head,6000MM Stainless Steel Dish Head,PED semi ellipsoidal head |
||
Product Description
Stainless Steel Elliptical Head/Dished Heads End Tank Head /Tube End For Boiler Pressure Container
Description:
Dished end, also called dished head or tank head, is an important pressure element for pressure vessels and boilers. The dished end is usually used at both ends of the pressure vessel and welded with the cylinder. According to the different geometric shapes, it can be divided into elliptical tank head, torispherical end, hemispherical dish end, spherical end, conical end, flat end, etc. High pressure vessels and boiler heads are mostly hemispherical, and elliptical are used for medium pressure and only a small number of low pressure vessels use torispherical.
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm-10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | About 10% |
| Material: | Duplex steel,carbon steel,stainless steel,aluminum,titanium and etc. |
| Technology: | Hot pressing, Cold pressing |
| Surface Treatment: | Sand Blasting,Pickling |
| Test: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME, PED and GB |
| Certificate: | ISO9001 ,ISO45001,OHSAS18001 |
| Applications: | Petroleum, chemical industry, water conservancy, electric power,boiler, machinery, metallurgy, sanitary construction etc. |
| Packaging: | wooden box and iron shelf or as percustomers requirement |
| Customized Product | Support |
Item Types
Products
Packing & Delivery
Applications:
Product Highlights
