10000mm Hot Formed Ellipsoidal Dish End Hemispherical Tank Heads For Fuel Tank ASME

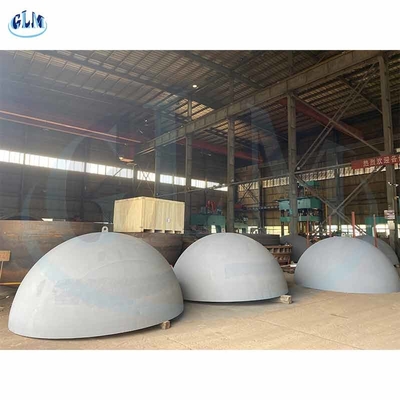

Large Image : 10000mm Hot Formed Ellipsoidal Dish End Hemispherical Tank Heads For Fuel Tank ASME

Product Details:

Place of Origin:	China
Brand Name:	GLM
Certification:	ASME, PED and GB
Model Number:	CAP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$5.00 - $125.00
Packaging Details:	wooden box and iron shelf or as percustomers requirement
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000

Contact Now

10000mm Hot Formed Ellipsoidal Dish End Hemispherical Tank Heads For Fuel Tank ASME

Description

Material:

Carbon Steel

Thickness::

2mm–300mm

Diameter:

89mm–10000mm

Technics::

Forged

Highlight:

10000mm Hot Formed Ellipsoidal Dish End

3mm Ellipsoidal Dish End

hemispherical tank heads asme

Hot Formed HEADS ASME Hemisphere Dished end FOR Fule Tank

Description:

Points to note when using the head:

1. Measure the outer circumference of the head. If the cylinder is processed in advance, please ask the production factory for the size of the outer circumference of the predetermined head;

2. Please divide the outer circumference of the head into 4 equal parts, and mark the cylinder and the head;

3. Weld the head and the cylinder. For welding, please choose your choice according to the diameter and thickness of the plate.

Applications of Our Dished Ends:

Oil & Gas , Chemical & Petrochemical Industries , Offshore , Cryogenic Industry,Pharmaceutical Industry , Food & Beverage , Water Treatment , Desalination Plants,Storage & Transport , Pulp & Paper , Mining , Power Generation,LNG Industry , Nuclear & Aerospace Industries.

Specifications:

Brand Name:	GLM
Diameter:	89mm-10000mm
Thickness:	2mm--300mm
Reduction Ratio:	About 10%
Material:	Duplex steel,carbon steel,stainless steel,aluminum,titanium and etc.
Technology:	Hot pressing, Cold pressing
Surface Treatment:	Sand Blasting,Pickling
Test:	UT,RT,MT,PT,TOFD.
Applicable Standard:	ASME, PED and GB
Certificate:	ISO9001 ,ISO45001,OHSAS18001
Applications:	Petroleum, chemical industry, water conservancy, electric power,boiler, machinery, metallurgy, sanitary construction etc.
Packaging:	wooden box and iron shelf or as percustomers requirement
Customized Product	Support

Products

10000mm Hot Formed Ellipsoidal Dish End Hemispherical Tank Heads For Fuel Tank ASME 0

Applications :

10000mm Hot Formed Ellipsoidal Dish End Hemispherical Tank Heads For Fuel Tank ASME 1

Our Team

10000mm Hot Formed Ellipsoidal Dish End Hemispherical Tank Heads For Fuel Tank ASME 2
