300mm 2mm Flat Dished Head For Pressure Vessel Sand Blasting
Product Details
| Head Code: | Flat Head | Technology: | Hot Pressing,cold Pressing |
|---|---|---|---|
| Reduction Ratio:: | About 10% | Certificate: | ISO9001 ,ISO14001,OHSAS18001 |
| Highlight |
300mm Flat Dished Head,2MM ASME Flat Dished Head,pressure vessel dished head Sand Blasting |
||
Product Description

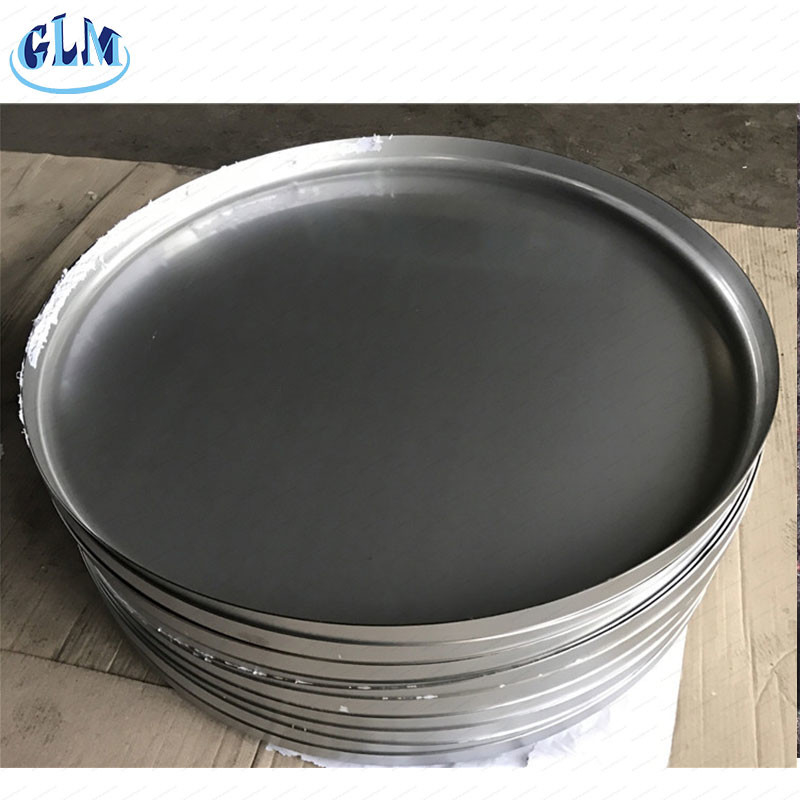

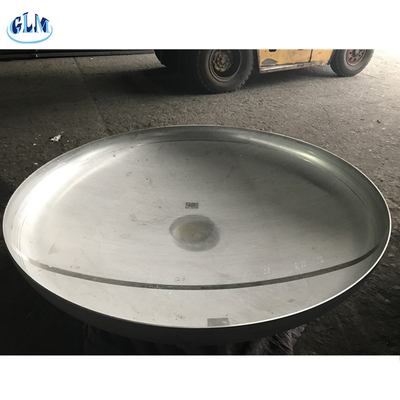

Flat head Product Image
1. Product Description
Pressure vessel torispherical head has a dish with a fixed radius, the size of which depends on the type of torispherical head. The transition between the cylinder and the dish is called the knuckle. The knuckle has a toroidal shape.
2. Main Features
- Materials: Ferritic, austenitic and non ferritic metals that can be cold worked.
- Fabrication Method: cold dishing and flanging or pressing.
- Dimensions: up to 8,000 mm diameter and 32mm thickness.
- Edge preparation: according to your requirement.
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
Equipments
Company Information
WUHAN LINMEI HEAD PLATE CO. LTD is a specialized manufacturer of head plate ,which is widely used in boilers and pressure vessels. The main products include: elliptical head, dish head, spherical head, hemispherical head ,expansion joints, corrugated furnace and other non-standard head,etc. The company occupies an area of 40000 square meters, and the total fixed assets is 270 Million Yuan.At present, it mainly has 500 tons, 800 tons, 1000 tons, 1500 tons, 2000 tons, 5000 tons, 8000 tons and 15000 tons double acting hydraulic machines, and has 3m, 4.2m, 5.2m, 10m, cold spinning machine, as well as 7 furnaces for heat treatment.Now, the products are sold to 20 or more provinces across the countries ,as well as overseas.
