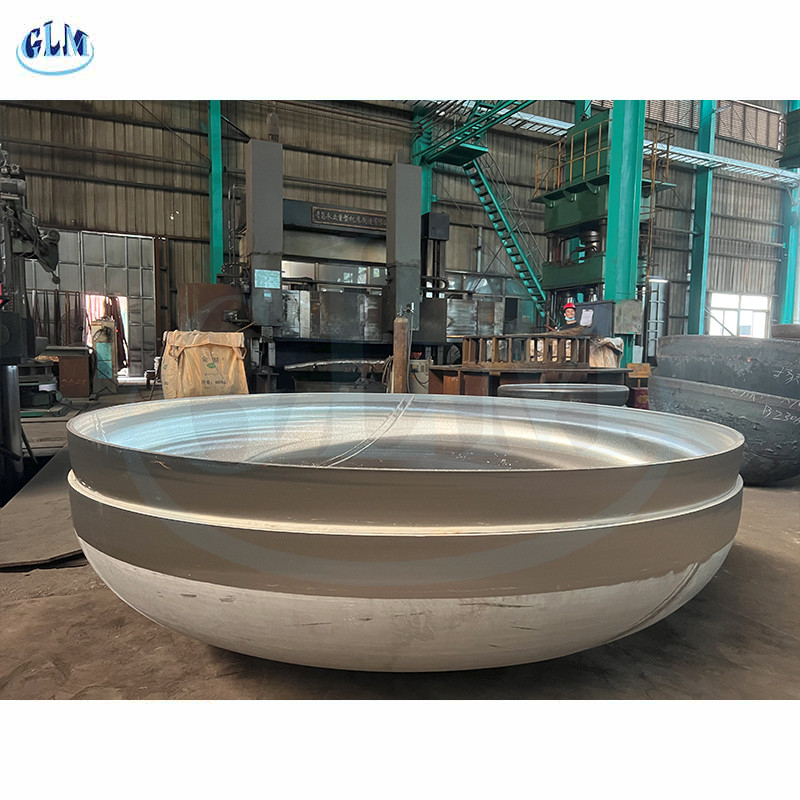

Diameter 4600mm, 6000mm, 7000mm Petal Dished Heads For Storage LPG Tanks

Diameter 4600mm, 6000mm, 7000mm Petal Dished Heads For Storage LPG Tanks
Diameter 4600mm, 6000mm, 7000mm Petal Dished Heads For Storage LPG Tanks

Large Image :  Diameter 4600mm, 6000mm, 7000mm Petal Dished Heads For Storage LPG Tanks

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASMEU,R,U2,PED,ABS,TUV,NB,ISO,
Model Number: Cap
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-125
Packaging Details: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Delivery Time: 10-30
Payment Terms: L/C,Western Union,T/T
Supply Ability: 50000 pieces per Month

Diameter 4600mm, 6000mm, 7000mm Petal Dished Heads For Storage LPG Tanks

Description
Process: Stamping, Spinning, Pressing, Etc. Connection: Welding
Material: Carbon Steel, Stainless Steel, Copper, Etc. Surface Treatment: Polishing, Sandblasting, Pickling, Etc.
Edge: Trimmed, Beveled, Flanged, Etc. Service Life: More Than 20 Years
Inspection: UT,RT,MT,PT,TOFD Technics: Hot Pressing,cold Pressing
High Light:

LPG tanks Petal Dished Heads

,

Carbon Steel Petal Dished Heads

,

Diameter 4600mm Dished Tank Heads

Product Description:

Dished Tank Heads are a type of head that is widely used in boilers and heat exchangers. Made from materials such as carbon steel, stainless steel, and copper, they are designed to meet various standards including ASME, DIN, and JIS. They are available in elliptical, hemispherical, and torispherical shapes, and are often referred to as crown and petal heads, Dished Only Tank Head, or crown and petal dished ends. Dished Tank Heads are used to create a pressure-tight seal, providing protection from hazardous conditions in industries such as chemical, petroleum, and pharmaceutical processing. They come in a range of forms, from conical and flat head shapes, to semi-elliptical and spherical designs. With their superior strength and durability, Dished Tank Heads are an ideal solution for a wide range of applications.



Features:

  • Product Name: Dished Tank Heads
  • Shape: Elliptical, Hemispherical, Torispherical, Etc.
  • Inspection: UT,RT,MT,PT,TOFD
  • Applicable Standard: ASME ,PED And GB
  • Head Code: Elliptical Head
  • Application: Boilers,and Heat Exchangers Etc.
  • Features: Petal Dished Ends, Hemispherical Dish End, Dish End, Elliptical Head, Torispherical Head


Technical Parameters:

Parameter Name Description
Shape Elliptical, Hemispherical, Torispherical, Etc.
Inspection UT, RT, MT, PT, TOFD
Thickness 3mm-200mm
Material Carbon Steel, Stainless Steel, Copper, Etc.
Technics Hot Pressing, Cold Pressing
Application Boilers,and Heat Exchangers Etc.
Applicable Standard ASME ,PED And GB
Surface Treatment Polishing, Sandblasting, Pickling, Etc.
Diameter 200mm-10000mm
Connection Welding


Applications:

The industrial sector has many branches that require a variety of products and services, including but not limited to oil and gas, chemicals, water management, electricity, boilers, machinery, metals, and sanitation construction.

Oil and chemical industries play an important role in the industry as it provides the necessary energy and resources for many processes. Water conservancy is essential as it helps regulate water levels for agricultural growth, crop production, and ecological health. Electric power, boilers, and machinery are also necessary components for the industry as it provides the energy needed to maintain production levels.

Metallurgy is also essential in the industry as it provides the necessary materials for various types of equipment and machines. Sanitary construction is also important, as it helps to maintain an element of safety for employees and minimizes the possibility of hazardous conditions.

Diameter 4600mm, 6000mm, 7000mm Petal Dished Heads For Storage LPG Tanks 0Diameter 4600mm, 6000mm, 7000mm Petal Dished Heads For Storage LPG Tanks 1Diameter 4600mm, 6000mm, 7000mm Petal Dished Heads For Storage LPG Tanks 2Diameter 4600mm, 6000mm, 7000mm Petal Dished Heads For Storage LPG Tanks 3Diameter 4600mm, 6000mm, 7000mm Petal Dished Heads For Storage LPG Tanks 4

Packing and Shipping:

Packaging and Shipping
  • Dished tank heads are packaged in standard wooden boxes.
  • The boxes are labeled with the product name, size, quantity, and other information.
  • The boxes are shipped via common carriers, such as UPS, FedEx, or DHL.
  • The shipping cost is calculated based on the size and weight of the package.


FAQ:

.

1. What's the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product


2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.


3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.


4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
