PED GB Elliptical Dished Head Pressure Vessel Ends Tank Cover ISO45001

Certification
China Wuhan Linmei Head Plate Co., Ltd. certification
China Wuhan Linmei Head Plate Co., Ltd. certification
I'm Online Chat Now

PED GB Elliptical Dished Head Pressure Vessel Ends Tank Cover ISO45001

PED GB Elliptical Dished Head Pressure Vessel Ends Tank Cover ISO45001
PED GB Elliptical Dished Head Pressure Vessel Ends Tank Cover ISO45001

Large Image :  PED GB Elliptical Dished Head Pressure Vessel Ends Tank Cover ISO45001

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

PED GB Elliptical Dished Head Pressure Vessel Ends Tank Cover ISO45001

Description
Head Code: Flat Head Technology: Hot Pressing,cold Pressing
Reduction Ratio:: About 10% Certificate: ISO9001 ,ISO14001,OHSAS18001
High Light:

PED elliptical dished head

,

GB elliptical dished head

,

pressure vessel ends ISO45001

Flat Head Elliptical Head Dished Ends Pressure vessels tank cover

Description:



Flat end, usually a round flat plate, can be connected to the cylinder by welding, or it can be connected to the flange by a bolt washer. The stress generated by the flat head under the action of pressure and the surrounding radial bending moment is the bending stress, which is divided into two directions, radial and circumferential. For this reason, usually there is only strength problem and there is no stability problem.

Flat heads under the uniform distribution of the surrounding bending moment, the two directions of the stress is evenly distributed, and the two are equal, said the pure bending state.





Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Flat head Product Image



PED GB Elliptical Dished Head Pressure Vessel Ends Tank Cover ISO45001 0

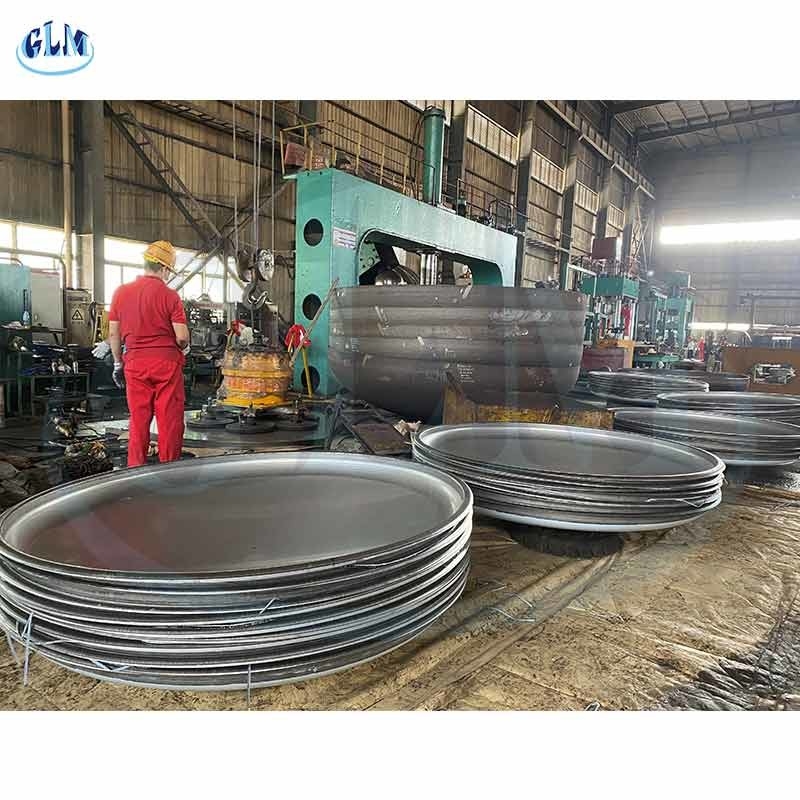

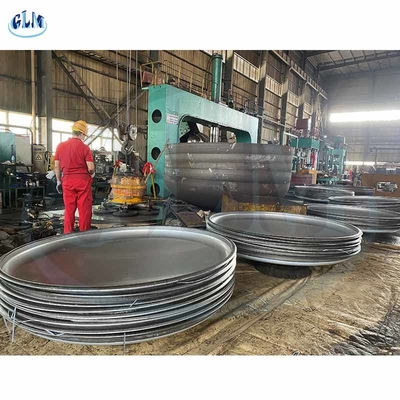

Equipments



PED GB Elliptical Dished Head Pressure Vessel Ends Tank Cover ISO45001 1





Company Information



PED GB Elliptical Dished Head Pressure Vessel Ends Tank Cover ISO45001 2

PED GB Elliptical Dished Head Pressure Vessel Ends Tank Cover ISO45001 3

PED GB Elliptical Dished Head Pressure Vessel Ends Tank Cover ISO45001 4
