Product Details:
|
| Body Material: | Q235 | Head Code: | Carbon Steel Ellipsoidal Head |
|---|---|---|---|
| Technology: | Hot Pressing/cold Pressing | Surface Treatment: | Pickling |
| Diameter: | 350 Mm | Keyword: | Ellipsoidal Tank Head |
| High Light: | Q235 89mm Semi Elliptical Head,Carbon Steel Semi Elliptical Head,100mm torispherical head and ellipsoidal head |
||

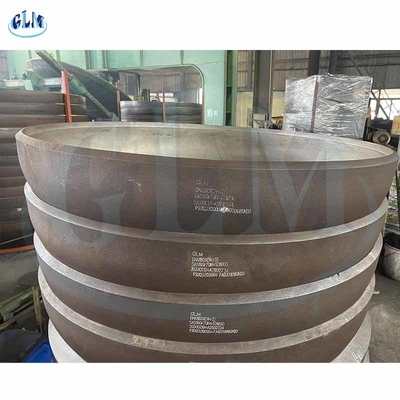

The elliptical head which is a head consisting of two parts: a rotating ellipsoidal sphere and a cylindrical straight section.
Elliptical tank head is fabricated to have a certain shape instead of a particular dish radius or knuckle radius. The dish radius is
approximately 90% of the diameter and the knuckle radius is approximately 17% of the diameter. 2:1 elliptical flanged and dished heads are ASME compliant.
Welding
Additional services include Custom Part Burning, Welding, Beveling, Pickling, Charpy Impact Testing, Sandblasting, Hardness Testing, Ultrasonic Testing and more
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
